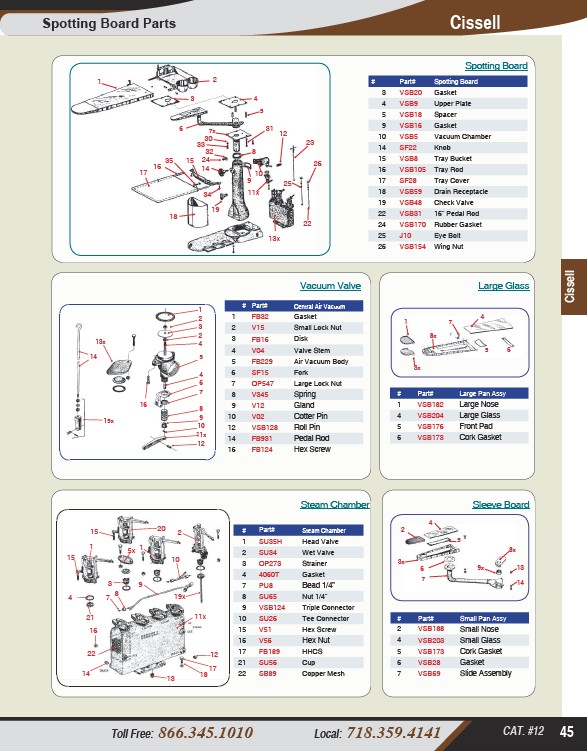

Spotting Board Parts
Spotting Board
# Part# Spotting Board
3 VSB20 Gasket
4 VSB9 Upper Plate
5 VSB18 Spacer
9 VSB16 Gasket
10 VSB5 Vacuum Chamber
14 SF22 Knob
15 VSB8 Tray Bucket
16 VSB105 Tray Rod
17 SF28 Tray Cover
18 VSB59 Drain Receptacle
19 VSB48 Check Valve
22 VSB31 16” Pedal Rod
24 VSB170 Rubber Gasket
25 J10 Eye Bolt
26 VSB154 Wing Nut
1 2
3 4
5
6 7x
30
33
32
24
14
17
35
34
19
18
15
8
31
10
12
23
22
26
25
9
11x
13x
16
Vacuum Valve
Large Glass
3x
1
4
5 6
7
8x
Steam Chamber Sleeve Board
2
3x
4
5
6
7
8x
9x 13
14
# Part# Small Pan Assy
2 VSB188 Small Nose
4 VSB203 Small Glass
5 VSB173 Cork Gasket
6 VSB28 Gasket
7 VSB69 Slide Assembly
1
2
3
2
4
5
4
6
7
8
9
10
11x
1
12
Toll Free: 866.345.1010 Local: 718.359.4141 CAT. #12 45
13x
14
15x
16
# Part# Central Air Vacuum
1 FB32 Gasket
2 V15 Small Lock Nut
3 FB16 Disk
4 V04 Valve Stem
5 FB229 Air Vacuum Body
6 SF15 Fork
7 OP547 Large Lock Nut
8 V345 Spring
9 V12 Gland
10 V02 Cotter Pin
12 VSB128 Roll Pin
14 FB931 Pedal Rod
16 FB124 Hex Screw
# Part# Large Pan Assy
1 VSB182 Large Nose
4 VSB204 Large Glass
5 VSB176 Front Pad
6 VSB173 Cork Gasket
# Part# Steam Chamber
1 SU35H Head Valve
2 SU34 Wet Valve
3 OP273 Strainer
4 4060T Gasket
7 PU8 Bead 1/4”
8 SU65 Nut 1/4”
9 VSB124 Triple Connector
10 SU26 Tee Connector
15 V51 Hex Screw
16 V56 Hex Nut
17 FB189 HHCS
21 SU56 Cup
22 SB89 Copper Mesh
15
5x
15
3
7 8
9
19x
14
11x
12
17
13 18
21
22
4
20
1 1
2
10
16
5
