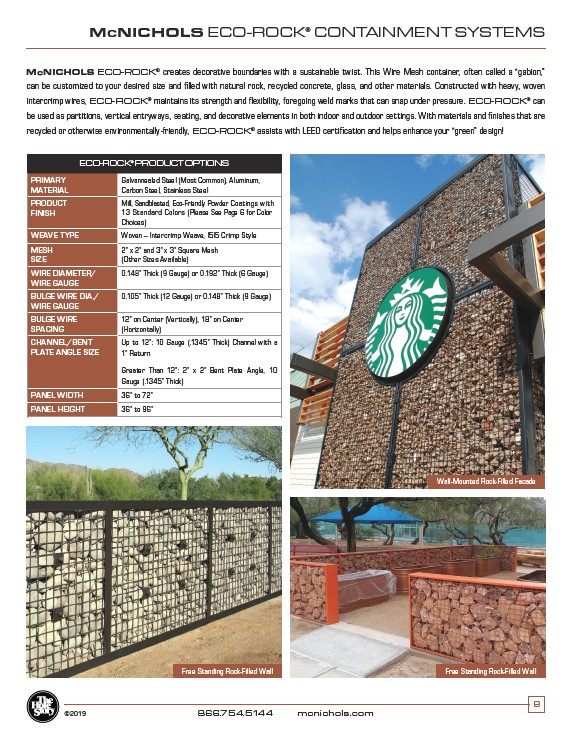

McNICHOLS ECO-ROCK® CONTAINMENT SYSTEMS
McNICHOLS ECO-ROCK® creates decorative boundaries with a sustainable twist. This Wire Mesh container, often called a “gabion,”
can be customized to your desired size and filled with natural rock, recycled concrete, glass, and other materials. Constructed with heavy, woven
intercrimp wires, ECO-ROCK® maintains its strength and flexibility, foregoing weld marks that can snap under pressure. ECO-ROCK® can
be used as partitions, vertical entryways, seating, and decorative elements in both indoor and outdoor settings. With materials and finishes that are
recycled or otherwise environmentally-friendly, ECO-ROCK® assists with LEED certification and helps enhance your “green” design!
ECO-ROCK® PRODUCT OPTIONS
PRIMARY
MATERIAL
Galvannealed Steel (Most Common), Aluminum,
Carbon Steel, Stainless Steel
PRODUCT
FINISH
Mill, Sandblasted, Eco-Friendly Powder Coatings with
13 Standard Colors (Please See Page 6 for Color
Choices)
WEAVE TYPE Woven – Intercrimp Weave, I5I5 Crimp Style
MESH
2" x 2" and 3" x 3" Square Mesh
SIZE
(Other Sizes Available)
WIRE DIAMETER/
WIRE GAUGE
0.148" Thick (9 Gauge) or 0.192" Thick (6 Gauge)
BULGE WIRE DIA./
WIRE GAUGE
0.105" Thick (12 Gauge) or 0.148" Thick (9 Gauge)
BULGE WIRE
SPACING
12" on Center (Vertically), 18" on Center
(Horizontally)
CHANNEL/BENT
PLATE ANGLE SIZE
Up to 12": 10 Gauge (.1345" Thick) Channel with a
1" Return
Greater Than 12": 2" x 2" Bent Plate Angle, 10
Gauge (.1345" Thick)
PANEL WIDTH 36" to 72"
PANEL HEIGHT 36" to 96"
866.754.5144 mcnichols.com
Wall-Mounted Rock-Filled Facade
8
©2019
Free Standing Rock-Filled Wall Free Standing Rock-Filled Wall
