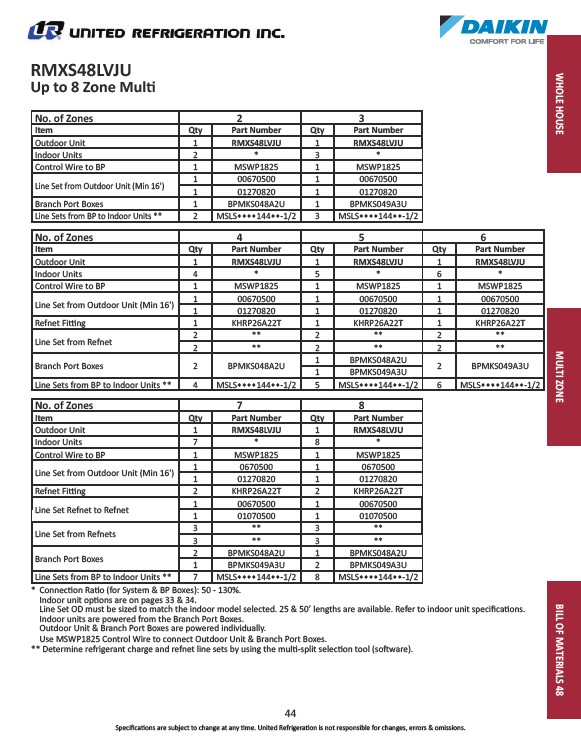

RMS48LVU
Up to 8 Zone Mul
No. of Zones 2 3
Item Qty Part Number Qty Part Number
Outdoor Unit 1 RMS48LVU 1 RMS48LVU
Indoor Units 2 * 3 *
Control Wire to BP 1 MSWP1825 1 MSWP1825
Line Set from Outdoor Unit (Min 16')
1 00670500 1 00670500
1 01270820 1 01270820
Branch Port Boxes 1 BPMKS048A2U 1 BPMKS049A3U
Line Sets from BP to Indoor Units ** 2 MSLS144-1/2 3 MSLS144-1/2
No. of Zones 4 5 6
Item Qty Part Number Qty Part Number Qty Part Number
Outdoor Unit 1 RMS48LVU 1 RMS48LVU 1 RMS48LVU
Indoor Units 4 * 5 * 6 *
Control Wire to BP 1 MSWP1825 1 MSWP1825 1 MSWP1825
Line Set from Outdoor Unit (Min 16')
1 00670500 1 00670500 1 00670500
1 01270820 1 01270820 1 01270820
Refnet Fing 1 KHRP26A22T 1 KHRP26A22T 1 KHRP26A22T
Line Set from Refnet
2 ** 2 ** 2 **
2 ** 2 ** 2 **
Branch Port Boxes 2 BPMKS048A2U
Line Sets from BP to Indoor Units ** 4 MSLS144-1/2 5 MSLS144-1/2 6 MSLS144-1/2
No. of Zones 7 8
Item Qty Part Number Qty Part Number
Outdoor Unit 1 RMS48LVU 1 RMS48LVU
Indoor Units 7 * 8 *
Control Wire to BP 1 MSWP1825 1 MSWP1825
Line Set from Outdoor Unit (Min 16')
1 0670500 1 0670500
1 01270820 1 01270820
Refnet Fing 2 KHRP26A22T 2 KHRP26A22T
Line Set Refnet to Refnet
1 00670500 1 00670500
1 01070500 1 01070500
3 ** 3 **
3 ** 3 **
44
1 BPMKS048A2U
2 BPMKS049A3U
1 BPMKS049A3U
Line Set from Refnets
Specicaons are subect to change at any me. United Refrigeraon is not responsible for changes, errors & omissions.
Branch Port Boxes
2 BPMKS048A2U 1 BPMKS048A2U
1 BPMKS049A3U 2 BPMKS049A3U
Line Sets from BP to Indoor Units ** 7 MSLS144-1/2 8 MSLS144-1/2
* Connecon Rao (for System & BP Boxes) 50 - 130%.
Indoor unit opons are on pages 33 & 34.
Line Set OD must be sized to match the indoor model selected. 25 & 50’ lengths are available. Refer to indoor unit specicaons.
Indoor units are powered from the Branch Port Boxes.
Outdoor Unit & Branch Port Boxes are powered individually.
Use MSWP1825 Control Wire to connect Outdoor Unit & Branch Port Boxes.
** Determine refrigerant charge and refnet line sets by using the mul-split selecon tool (soware).
WHOLE HOUSE MULTI ZONE BILL OF MATERIALS 48
