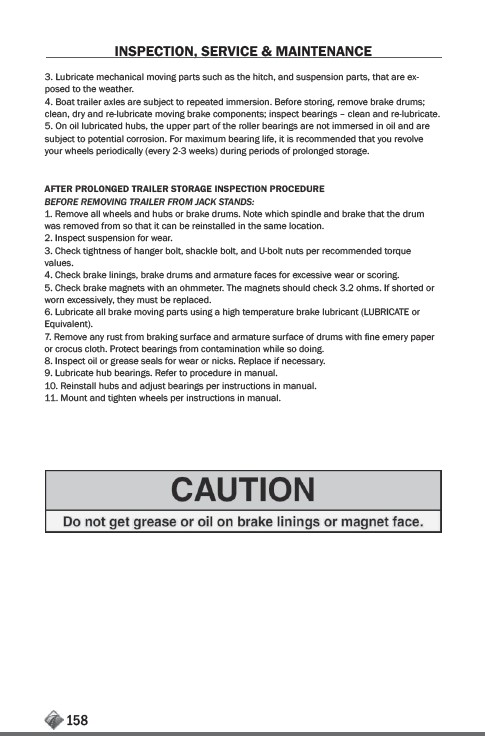

3. Lubricate mechanical moving parts such as the hitch, and suspension parts, that are exposed
to the weather.
4. Boat trailer axles are subject to repeated immersion. Before storing, remove brake drums;
clean, dry and re-lubricate moving brake components; inspect bearings – clean and re-lubricate.
5. On oil lubricated hubs, the upper part of the roller bearings are not immersed in oil and are
subject to potential corrosion. For maximum bearing life, it is recommended that you revolve
AFTER PROLONGED TRAILER STORAGE INSPECTION PROCEDURE
BEFORE REMOVING TRAILER FROM JACK STANDS:
1. Remove all wheels and hubs or brake drums. Note which spindle and brake that the drum
was removed from so that it can be reinstalled in the same location.
2. Inspect suspension for wear.
3. Check tightness of hanger bolt, shackle bolt, and U-bolt nuts per recommended torque
values.
4. Check brake linings, brake drums and armature faces for excessive wear or scoring.
5. Check brake magnets with an ohmmeter. The magnets should check 3.2 ohms. If shorted or
worn excessively, they must be replaced.
6. Lubricate all brake moving parts using a high temperature brake lubricant (LUBRICATE or
or crocus cloth. Protect bearings from contamination while so doing.
8. Inspect oil or grease seals for wear or nicks. Replace if necessary.
9. Lubricate hub bearings. Refer to procedure in manual.
10. Reinstall hubs and adjust bearings per instructions in manual.
11. Mount and tighten wheels per instructions in manual.
158
INSPECTION, SERVICE & MAINTENANCE
