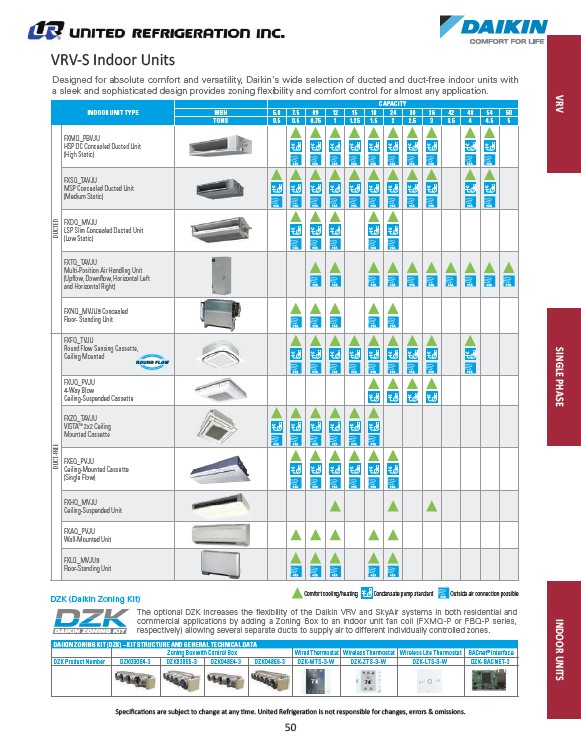

Designed for absolute comfort and versatility, Daikin's wide selection of ducted and duct-free indoor units with
a sleek and sophisticated design provides zoning flexibility and comfort control for almost any application.
INDOOR UNIT TYPE
DUCTED
FXMQ_PBVJU
HSP DC Concealed Ducted Unit
(High Static)
FXSQ_TAVJU
MSP Concealed Ducted Unit
(Medium Static)
FXDQ_MVJU
LSP Slim Concealed Ducted Unit
(Low Static)
FXTQ_TAVJU
Multi-Position Air Handling Unit
(Upflow, Downflow, Horizontal Left
and Horizontal Right)
FXNQ_MVJU9 Concealed
Floor- Standing Unit
DUCT-FREE
FXFQ_TVJU
Round Flow Sensing Cassette,
Ceiling Mounted
FXUQ_PVJU
4-Way Blow
Ceiling-Suspended Cassette
FXZQ_TAVJU
VISTATM 2x2 Ceiling
Mounted Cassette
FXEQ_PVJU
Ceiling-Mounted Cassette
(Single Flow)
FXHQ_MVJU
Ceiling-Suspended Unit
FXAQ_PVJU
Wall-Mounted Unit
FXLQ_MVJU9
Floor-Standing Unit
DZK (Daikin Zoning Kit)
CAPACITY
MBH 5.8 7.5 09 12 15 18 24 30 36 42 48 54 60
TONS 0.5 0.6 0.75 1 1.25 1.5 2 2.5 3 3.5 4 4.5 5
Comfort cooling/heating
Condensate pump standard Outside air connection possible
The optional DZK increases the flexibility of the Daikin VRV and SkyAir systems in both residential and
commercial applications by adding a Zoning Box to an indoor unit fan coil (FXMQ-P or FBQ-P series,
respectively) allowing several separate ducts to supply air to different individually controlled zones.
DAIKIN ZONING KIT (DZK) – KIT STRUCTURE AND GENERAL TECHNICAL DATA
Zoning Box with Control Box Wired Thermostat Wireless Thermostat Wireless Lite Thermostat BACnet® Interface
DZK Product Number DZK030E4-3 DZK030E5-3 DZK048E4-3 DZK048E6-3 DZK-MTS-3-W DZK-ZTS-3-W DZK-LTS-3-W DZK-BACNET-3
Specicaons are subect to change at any me. United Refrigeraon is not responsible for changes, errors & omissions.
50
VRV SINLE PHASE INDOOR UNITS
VRV-S Indoor Units
