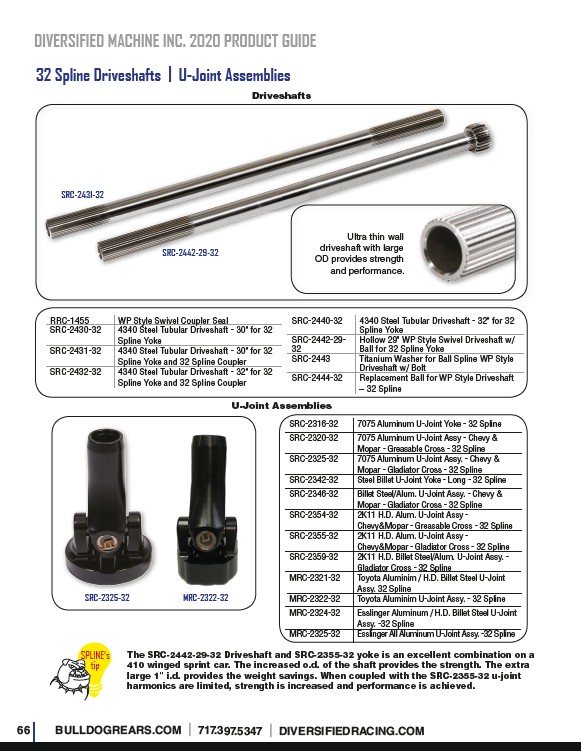

DIVERSIFIED MACHINE INC. 2020 PRODUCT GUIDE
32 Spline Driveshafts | U-Joint Assemblies
SRC-2431-32
SRC-2442-29-32
Driveshafts
RRC-1455 WP Style Swivel Coupler Seal
SRC-2430-32 4340 Steel Tubular Driveshaft - 30" for 32
Spline Yoke
SRC-2431-32 4340 Steel Tubular Driveshaft - 30" for 32
Spline Yoke and 32 Spline Coupler
SRC-2432-32 4340 Steel Tubular Driveshaft - 32" for 32
Spline Yoke and 32 Spline Coupler
Ultra thin wall
driveshaft with large
OD provides strength
and performance.
SRC-2440-32 4340 Steel Tubular Driveshaft - 32" for 32
Spline Yoke
SRC-2442-29-
32
Hollow 29" WP Style Swivel Driveshaft w/
Ball for 32 Spline Yoke
SRC-2443 Titanium Washer for Ball Spline WP Style
Driveshaft w/ Bolt
SRC-2444-32 Replacement Ball for WP Style Driveshaft
– 32 Spline
U-Joint Assemblies
SRC-2316-32 7075 Aluminum U-Joint Yoke - 32 Spline
SRC-2320-32 7075 Aluminum U-Joint Assy - Chevy &
Mopar - Greasable Cross - 32 Spline
SRC-2325-32 7075 Aluminum U-Joint Assy. - Chevy &
Mopar - Gladiator Cross - 32 Spline
SRC-2342-32 Steel Billet U-Joint Yoke - Long - 32 Spline
SRC-2346-32 Billet Steel/Alum. U-Joint Assy. - Chevy &
Mopar - Gladiator Cross - 32 Spline
SRC-2354-32 2K11 H.D. Alum. U-Joint Assy -
Chevy&Mopar - Greasable Cross - 32 Spline
SRC-2355-32 2K11 H.D. Alum. U-Joint Assy -
Chevy&Mopar - Gladiator Cross - 32 Spline
SRC-2359-32 2K11 H.D. Billet Steel/Alum. U-Joint Assy. -
Gladiator Cross - 32 Spline
MRC-2321-32 Toyota Aluminim / H.D. Billet Steel U-Joint
Assy. 32 Spline
MRC-2322-32 Toyota Aluminim U-Joint Assy. - 32 Spline
MRC-2324-32 Esslinger Aluminum / H.D. Billet Steel U-Joint
Assy. -32 Spline
MRC-2325-32 Esslinger All Aluminum U-Joint Assy. -32 Spline
SRC-2325-32 MRC-2322-32
The SRC-2442-29-32 Driveshaft and SRC-2355-32 yoke is an excellent combination on a
410 winged sprint car. The increased o.d. of the shaft provides the strength. The extra
large 1" i.d. provides the weight savings. When coupled with the SRC-2355-32 u-joint
harmonics are limited, strength is increased and performance is achieved.
SPLINE’s
tip
66 BULLDOGREARS.COM | 717.397.5347 | DIVERSIFIEDRACING.COM
