The Proper Tools to Keep Your Equipment Moving...

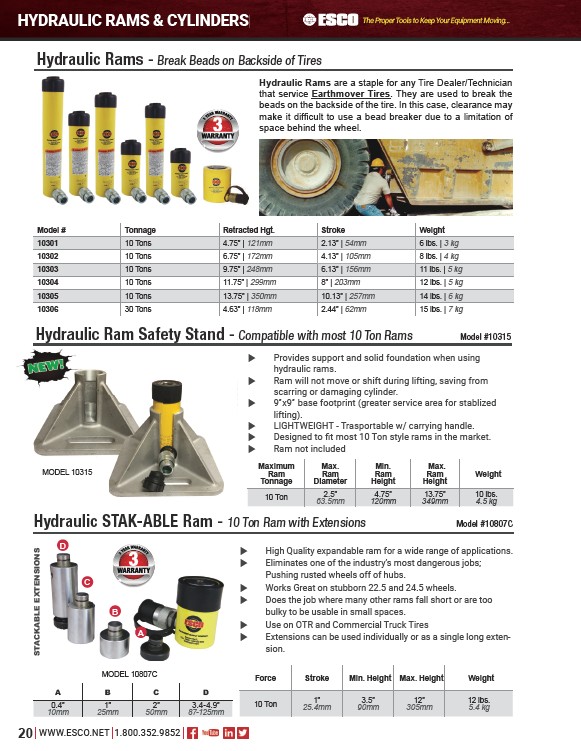

HYDRAULIC RAMS & CYLINDERS
Hydraulic Rams - Break Beads on Backside of Tires
Hydraulic Ram Safety Stand - Compatible with most 10 Ton Rams Model #10315
A
B
20 WWW.ESCO.NET 1.800.352.9852
Hydraulic Rams are a staple for any Tire Dealer/Technician
that service Earthmover Tires. They are used to break the
beads on the backside of the tire. In this case, clearance may
����������������������������������������������������������������������������������������������������������������������������
space behind the wheel.
Model # Tonnage Retracted Hgt. Stroke Weight
10301 10 Tons 4.75” | 121mm 2.13” | 54mm 6 lbs. | 3 kg
10302 10 Tons 6.75” | 172mm 4.13” | 105mm 8 lbs. | 4 kg
10303 10 Tons 9.75” | 248mm 6.13” | 156mm 11 lbs. | 5 kg
10304 10 Tons 11.75” | 299mm 8” | 203mm 12 lbs. | 5 kg
10305 10 Tons 13.75” | 350mm 10.13” | 257mm 14 lbs. | 6 kg
10306 30 Tons 4.63” | 118mm 2.44” | 62mm 15 lbs. | 7 kg
Hydraulic STAK-ABLE Ram - 10 Ton Ram with Extensions Model #10807C
�� High Quality expandable ram for a wide range of applications.
�� Eliminates one of the industry’s most dangerous jobs;
Force Stroke Min. Height Max. Height Weight
10 Ton 1”
25.4mm
3.5”
90mm
12”
305mm
12 lbs.
5.4 kg
Pushing rusted wheels off of hubs.
�� Works Great on stubborn 22.5 and 24.5 wheels.
�� Does the job where many other rams fall short or are too
bulky to be usable in small spaces.
�� Use on OTR and Commercial Truck Tires
�� Extensions can be used individually or as a single long extension.
A B C D
0.4”
1”
2”
10mm
25mm
50mm
3.4-4.9”
87-125mm
�� Provides support and solid foundation when using
hydraulic rams.
�� Ram will not move or shift during lifting, saving from
scarring or damaging cylinder.
�� 9”x9” base footprint (greater service area for stablized
lifting).
�� LIGHTWEIGHT - Trasportable w/ carrying handle.
�� ��������������������������������������������������������������������������������������������������������
�� Ram not included
Maximum
Ram
Tonnage
Max.
Ram
Diameter
Min.
Ram
Height
Max.
Ram
Height
Weight
10 Ton 2.5”
63.5mm
4.75”
120mm
13.75”
349mm
10 lbs.
4.5 kg
MODEL 10807C
C
D
STACKABLE EXTENSIONS
MODEL 10315
