The Proper Tools to Keep Your Equipment Moving...
HD AIR/HYDRAULIC JACKS

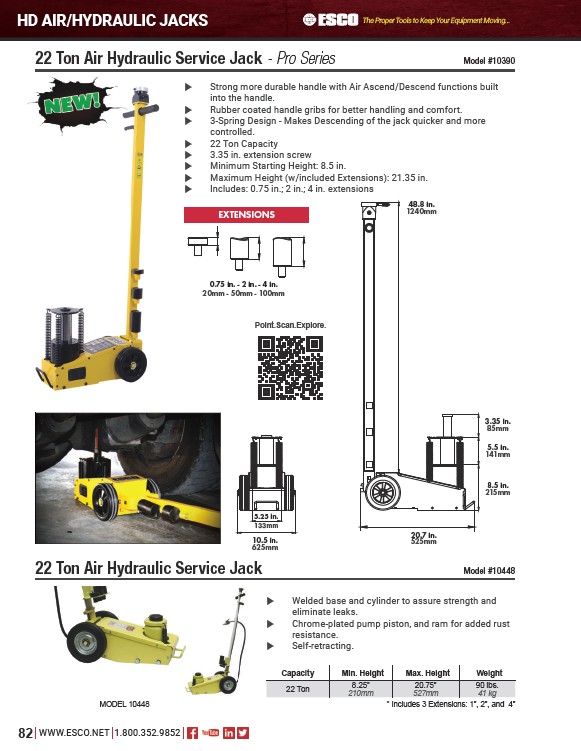

22 Ton Air Hydraulic Service Jack - Pro Series Model #10390
�� Strong more durable handle with Air Ascend/Descend functions built
into the handle.
�� Rubber coated handle gribs for better handling and comfort.
�� 3-Spring Design - Makes Descending of the jack quicker and more
controlled.
�� 22 Ton Capacity
�� 3.35 in. extension screw
�� Minimum Starting Height: 8.5 in.
�� Maximum Height (w/included Extensions): 21.35 in.
�� Includes: 0.75 in.; 2 in.; 4 in. extensions
EXTENSIONS
0.75 in. - 2 in. - 4 in.
20mm - 50mm - 100mm
Point.Scan.Explore.
22 Ton Air Hydraulic Service Jack Model #10448
82 WWW.ESCO.NET 1.800.352.9852
3.35 in.
85mm
5.5 in.
141mm
8.5 in.
215mm
48.8 in.
1240mm
20.7 in.
5.25 in.
133mm
10.5 in. 525mm
625mm
�� Welded base and cylinder to assure strength and
eliminate leaks.
�� Chrome-plated pump piston, and ram for added rust
resistance.
�� Self-retracting.
Capacity Min. Height Max. Height Weight
22 Ton 8.25”
210mm
20.75”
527mm
90 lbs.
41 kg
MODEL 10448 * Includes 3 Extensions: 1”, 2”, and 4”
