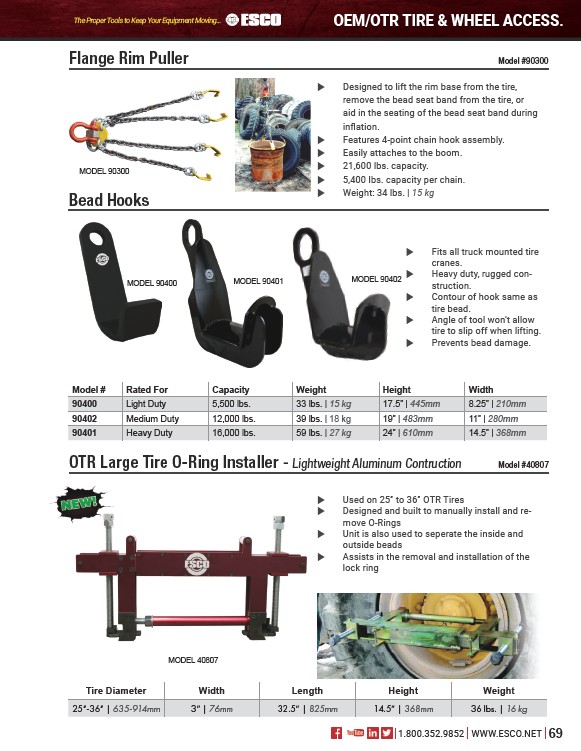

The Proper Tools to Keep Your Equipment Moving...
OEM/OTR TIRE & WHEEL ACCESS.
Flange Rim Puller Model #90300
�� Designed to lift the rim base from the tire,
remove the bead seat band from the tire, or
aid in the seating of the bead seat band during
��������������������
�� Features 4-point chain hook assembly.
�� Easily attaches to the boom.
�� 21,600 lbs. capacity.
�� 5,400 lbs. capacity per chain.
�� Weight: 34 lbs. | 15 kg
�� Fits all truck mounted tire
cranes.
�� Heavy duty, rugged construction.
�� Contour of hook same as
tire bead.
�� Angle of tool won’t allow
tire to slip off when lifting.
�� Prevents bead damage.
Bead Hooks
MODEL 90400 MODEL 90401 MODEL 90402
1.800.352.9852 WWW.ESCO.NET 69
MODEL 90300
Model # Rated For Capacity Weight Height Width
90400 Light Duty 5,500 lbs. 33 lbs. | 15 kg 17.5” | 445mm 8.25” | 210mm
90402 Medium Duty 12,000 lbs. 39 lbs. | 18 kg 19” | 483mm 11” | 280mm
90401 Heavy Duty 16,000 lbs. 59 lbs. | 27 kg 24” | 610mm 14.5” | 368mm
OTR Large Tire O-Ring Installer - Lightweight Aluminum Contruction Model #40807
�� Used on 25” to 36” OTR Tires
�� Designed and built to manually install and remove
O-Rings
�� Unit is also used to seperate the inside and
outside beads
�� Assists in the removal and installation of the
lock ring
MODEL 40807
Tire Diameter Width Length Height Weight
25”-36” | 635-914mm 3” | 76mm 32.5” | 825mm 14.5” | 368mm 36 lbs. | 16 kg
