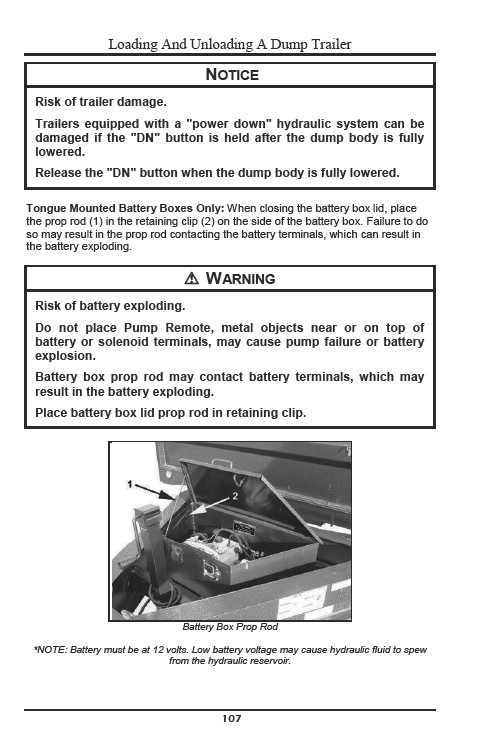

Loading And Unloading A Dump Trailer
NOTICE
Risk of trailer damage.
Trailers equipped with a "power down" hydraulic system can be
damaged if the "DN" button is held after the dump body is fully
lowered.
Release the "DN" button when the dump body is fully lowered.
Tongue Mounted Battery Boxes Only: When closing the battery box lid, place
the prop rod (1) in the retaining clip (2) on the side of the battery box. Failure to do
so may result in the prop rod contacting the battery terminals, which can result in
the battery exploding.
! WARNING
Risk of battery exploding.
Do not place Pump Remote, metal objects near or on top of
battery or solenoid terminals, may cause pump failure or battery
explosion.
Battery box prop rod may contact battery terminals, which may
result in the battery exploding.
Place battery box lid prop rod in retaining clip.
Battery Box Prop Rod
*NOTE: Battery must be at 12 volts. Low battery voltage may cause hydraulic fluid to spew
from the hydraulic reservoir.
107
