The hydraulic pump, battery and control are located on the curb side of the trailer in a lockable
box.
after trailer deck clears the locks.
111

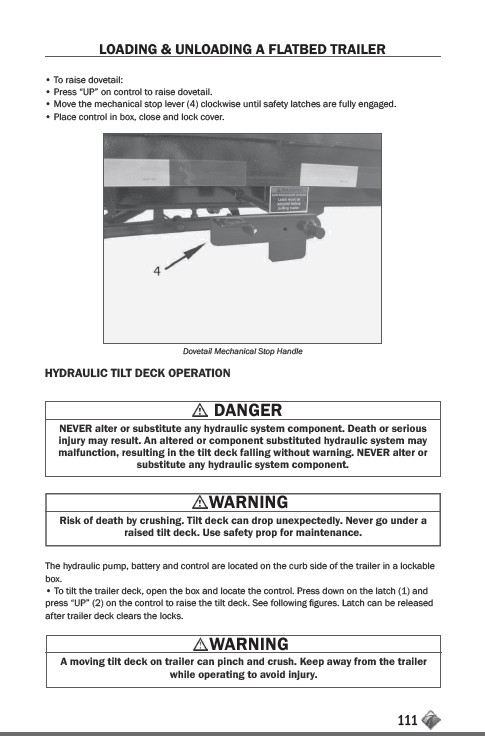

LOADING & UNLOADING A FLATBED TRAILER
• To raise dovetail:
• Press “UP” on control to raise dovetail.
• Place control in box, close and lock cover.
Dovetail Mechanical Stop Handle
HYDRAULIC TILT DECK OPERATION
DANGER
NEVER alter or substitute any hydraulic system component. Death or serious
injury may result. An altered or component substituted hydraulic system may
malfunction, resulting in the tilt deck falling without warning. NEVER alter or
substitute any hydraulic system component.
WARNING
Risk of death by crushing. Tilt deck can drop unexpectedly. Never go under a
raised tilt deck. Use safety prop for maintenance.
WARNING
A moving tilt deck on trailer can pinch and crush. Keep away from the trailer
while operating to avoid injury.
