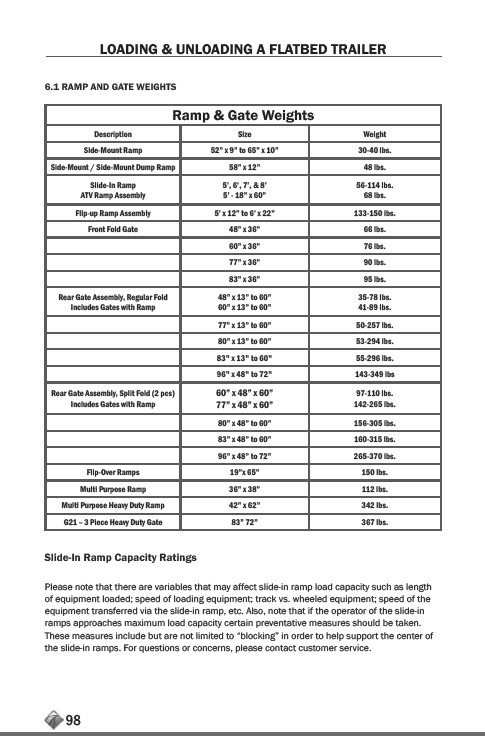

6.1 RAMP AND GATE WEIGHTS
98
LOADING & UNLOADING A FLATBED TRAILER
Ramp & Gate Weights
Description Size Weight
Side-Mount Ramp 52” x 9” to 65” x 10” 30-40 lbs.
Side-Mount / Side-Mount Dump Ramp 58” x 12” 48 lbs.
Slide-In Ramp
ATV Ramp Assembly
5’, 6’, 7’, & 8’
5’ - 18” x 60”
56-114 lbs.
68 lbs.
Flip-up Ramp Assembly 5’ x 12” to 6’ x 22” 133-150 lbs.
Front Fold Gate 48” x 36” 66 lbs.
60” x 36” 76 lbs.
77” x 36” 90 lbs.
83” x 36” 95 lbs.
Rear Gate Assembly, Regular Fold
Includes Gates with Ramp
48” x 13” to 60”
60” x 13” to 60”
35-78 lbs.
41-89 lbs.
77” x 13” to 60” 50-257 lbs.
80” x 13” to 60” 53-294 lbs.
83" x 13" to 60" 55-296 lbs.
96" x 48" to 72" 143-349 lbs
Rear Gate Assembly, Split Fold (2 pcs)
Includes Gates with Ramp
60” x 48” x 60”
77” x 48” x 60”
97-110 lbs.
142-265 lbs.
80” x 48” to 60” 156-305 lbs.
83” x 48” to 60” 160-315 lbs.
96” x 48” to 72” 265-370 lbs.
Flip-Over Ramps 19”x 65” 150 lbs.
Multi Purpose Ramp 36” x 38” 112 lbs.
Multi Purpose Heavy Duty Ramp 42” x 62” 342 lbs.
G21 – 3 Piece Heavy Duty Gate 83” 72” 367 lbs.
Slide-In Ramp Capacity Ratings
Please note that there are variables that may affect slide-in ramp load capacity such as length
of equipment loaded; speed of loading equipment; track vs. wheeled equipment; speed of the
equipment transferred via the slide-in ramp, etc. Also, note that if the operator of the slide-in
ramps approaches maximum load capacity certain preventative measures should be taken.
These measures include but are not limited to “blocking” in order to help support the center of
the slide-in ramps. For questions or concerns, please contact customer service.
