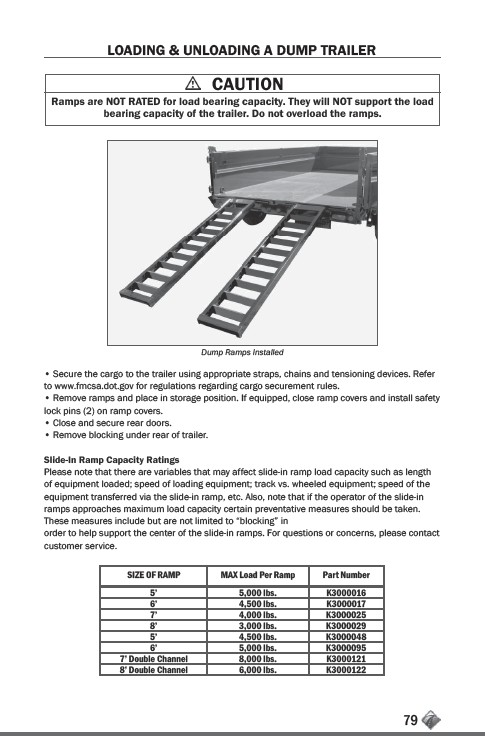

LOADING & UNLOADING A DUMP TRAILER
CAUTION
Ramps are NOT RATED for load bearing capacity. They will NOT support the load
bearing capacity of the trailer. Do not overload the ramps.
Dump Ramps Installed
• Secure the cargo to the trailer using appropriate straps, chains and tensioning devices. Refer
to www.fmcsa.dot.gov for regulations regarding cargo securement rules.
• Remove ramps and place in storage position. If equipped, close ramp covers and install safety
����������������������������������������������������������
• Close and secure rear doors.
• Remove blocking under rear of trailer.
Slide-In Ramp Capacity Ratings
Please note that there are variables that may affect slide-in ramp load capacity such as length
of equipment loaded; speed of loading equipment; track vs. wheeled equipment; speed of the
equipment transferred via the slide-in ramp, etc. Also, note that if the operator of the slide-in
ramps approaches maximum load capacity certain preventative measures should be taken.
These measures include but are not limited to “blocking” in
order to help support the center of the slide-in ramps. For questions or concerns, please contact
customer service.
SIZE OF RAMP MAX Load Per Ramp Part Number
5’ 5,000 lbs. K3000016
6’ 4,500 lbs. K3000017
7’ 4,000 lbs. K3000025
8’ 3,000 lbs. K3000029
5’ 4,500 lbs. K3000048
6’ 5,000 lbs. K3000095
7’ Double Channel 8,000 lbs. K3000121
8’ Double Channel 6,000 lbs. K3000122
