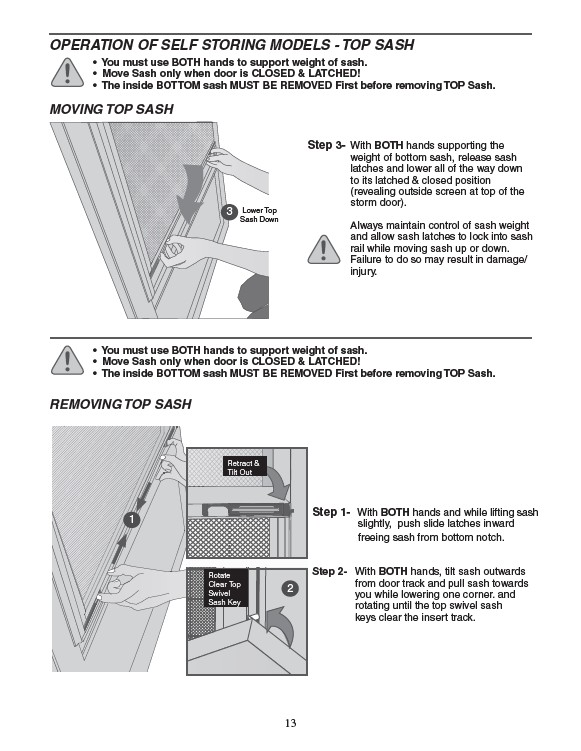

OPERATION OF SELF STORING MODELS - TOP SASH
! • You must use BOTH hands to support weight of sash.
• Move Sash only when door is CLOSED & LATCHED!
• The inside BOTTOM sash MUST BE REMOVED First before removing TOP Sash.
! • You must use BOTH hands to support weight of sash.
• Move Sash only when door is CLOSED & LATCHED!
• The inside BOTTOM sash MUST BE REMOVED First before removing TOP Sash.
7 13
1
Step 3- With BOTH hands supporting the
weight of bottom sash, release sash
latches and lower all of the way down
to its latched & closed position
(revealing outside screen at top of the
storm door).
Always maintain control of sash weight
and allow sash latches to lock into sash
!
rail while moving sash up or down.
Failure to do so may result in damage/
injury.
3
Retract &
Tilt Out
Rotate
Clear Top
Swivel
Sash Key
Step 1- With BOTH hands and while lifting sash
slightly, push slide latches inward
freeing sash from bottom notch.
Step 2- With BOTH hands, tilt sash outwards
from door track and pull sash towards
you while lowering one corner. and
rotating until the top swivel sash
keys clear the insert track.
Bottom Sash Rail
2
MOVING TOP SASH
Lower Top
Sash Down
REMOVING TOP SASH
