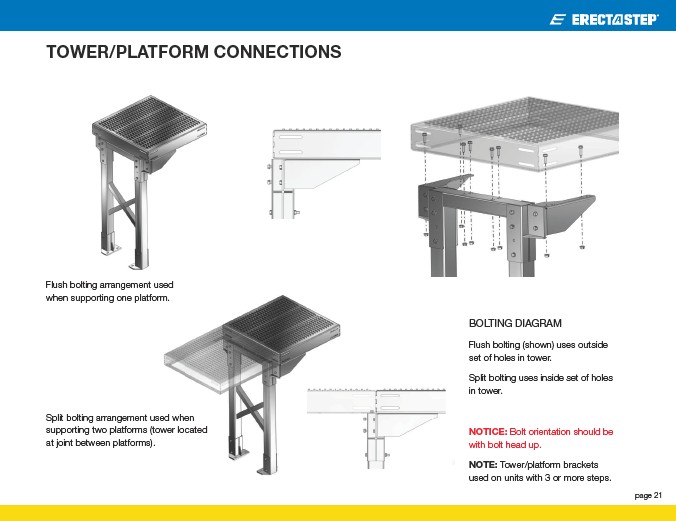

TOWER/PLATFORM CONNECTIONS
Flush bolting arrangement used
when supporting one platform.
t used
form.
Split bolting arrangement used when
supporting two platforms (tower located
at joint between platforms).
used when
ower
atforms).
BOLTING DIAGRAM
Flush bolting (shown) uses outside
set of holes in tower.
Split bolting uses inside set of holes
in tower.
NOTICE: Bolt orientation should be
with bolt head up.
NOTE: Tower/platform brackets
used on units with 3 or more steps.
page 21
