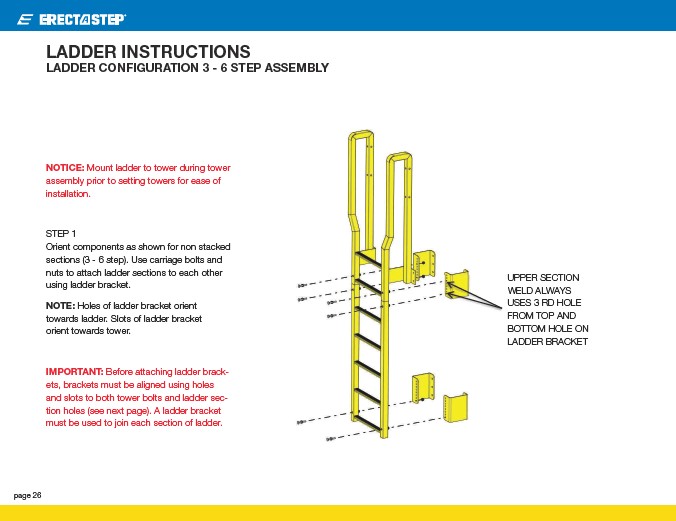

LADDER INSTRUCTIONS
LADDER CONFIGURATION 3 - 6 STEP ASSEMBLY
NOTICE: Mount ladder to tower during tower
assembly prior to setting towers for ease of
installation.
STEP 1
Orient components as shown for non stacked
sections (3 - 6 step). Use carriage bolts and
nuts to attach ladder sections to each other
using ladder bracket.
NOTE: Holes of ladder bracket orient
towards ladder. Slots of ladder bracket
orient towards tower.
IMPORTANT: Before attaching ladder brackets,
brackets must be aligned using holes
and slots to both tower bolts and ladder section
holes (see next page). A ladder bracket
must be used to join each section of ladder.
UPPER SECTION
WELD ALWAYS
USES 3 RD HOLE
FROM TOP AND
BOTTOM HOLE ON
LADDER BRACKET
