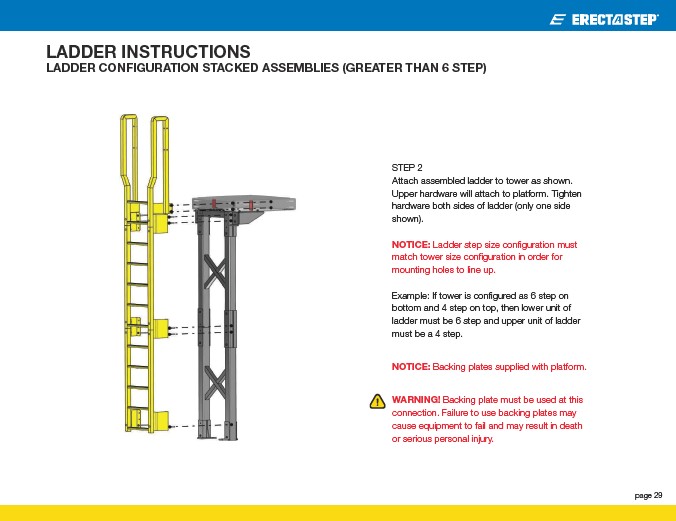

LADDER INSTRUCTIONS
LADDER CONFIGURATION STACKED ASSEMBLIES (GREATER THAN 6 STEP)
STEP 2
Attach assembled ladder to tower as shown.
Upper hardware will attach to platform. Tighten
hardware both sides of ladder (only one side
shown).
NOTICE: Ladder step size configuration must
match tower size configuration in order for
mounting holes to line up.
Example: If tower is configured as 6 step on
bottom and 4 step on top, then lower unit of
ladder must be 6 step and upper unit of ladder
must be a 4 step.
NOTICE: Backing plates supplied with platform.
WARNING! Backing plate must be used at this
connection. Failure to use backing plates may
cause equipment to fail and may result in death
or serious personal injury.
page 29
